Barkiet System - PRODUCTS FOR CARE AND INSTALLATION

all UNDERLAY MOUNTING CLIPS ADHESIVE ASSEMBLY INSTALLATION TOOLS

Application of Barlinek UndarlaymentsWARNING:
For the installation of engineered wooden floors in a classic herringbone pattern in a floating system, an underlay with a CS parameter ≥ 220 kPa must be used, e.g. FixMat Sound 2.1 SD or Extreme 1.5.
Cork underlays and Eco boards must not be used for the installation of classic herringbone floors.
For the installation of French herringbone floors and tongue-and-groove boards, no underlay is used (installation only by gluing or stapling).
For the installation of vinyl and hybrid floors, an underlay with a CS parameter ≥ 400 kPa must be used; in the Barlinek range this is Extreme 1.5.
No other underlays from the Barlinek range may be used under vinyl and hybrid floors.

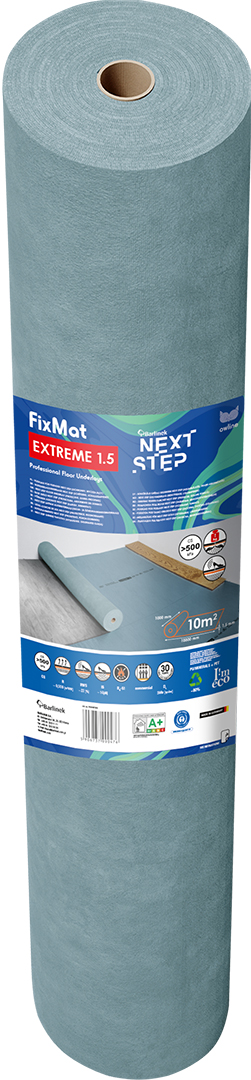

EXTREME 1.5 – PROFESSIONAL UNDERLAYMENT NEXT STEP

A professional, eco‑friendly underlay, durable and designed specifically for Barlinek Next Step floors to protect the flooring and enhance its performance during use. It protects the board joints (resistant to heavy loads), reduces floor noise (impact sound up/down), and is ideal for underfloor heating (very low thermal resistance and excellent heat conduction).

Fixmat Sound 2.1 SD PROFESSIONAL UNDERLAYMENT

The fixmat sound 2.1 sd underlay is dedicated to be used under multi-layer engineered wood floors but can be successfully used under artificial laminate floor with locking joints (the underlay meets the strict requirements set by the EPLF association).

Grey underfloor board 5.5 mm, 6.99 m²

An ecological and environmentally friendly product made from compacted wood fibre:

  • good thermal and acoustic insulation
  • resistant to heavy loads
  • levels out subfloors to around 3 mm
  • quick and easy to install

Parameters:

  • Acoustic absorption – 15-19 dB
  • Thermal conductivity 0.07 W/mK
  • Thermal resistance – 0,079 m2K/W
  • Density – 250 kg/m³

Cork mat 2 mm, 10 m2

An ecological and environmentally friendly product made from compacted natural cork:

  • good thermal and acoustic insulation
  • resistant to heavy loads
  • durable and flexible
  • moisture-resistant
  • quick and easy to install

Parameters:

  • Acoustic absorption – 19 [dB]
  • Heat transfer coefficient 0.20 [W/mK]
  • Density – 200 [kg/m3]
